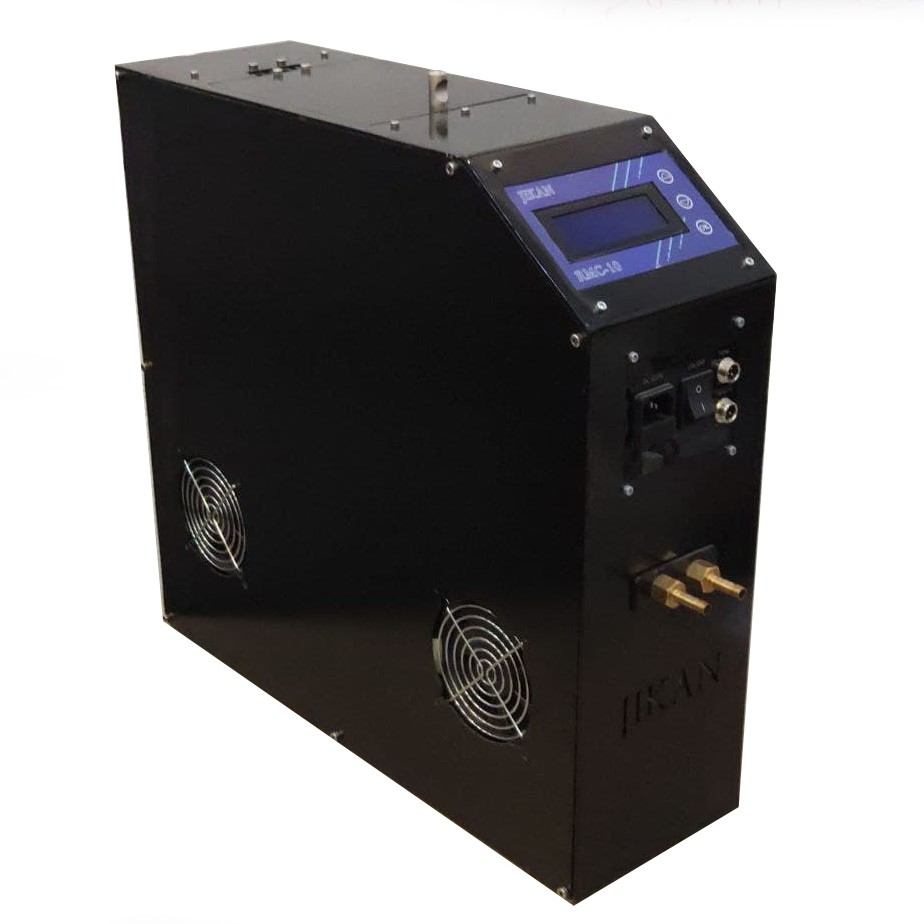

Jikan RMC-10

Jikan RMC-10 is a laboratory thermoelectric mini chiller, used for cooling by re-circulating the coolant. It can be used either for cooling the liquid itself or as a heat exchanger to chill any other laboratory equipment.

  • An ideal solution to get rid of excessive heat
  • Compact design
  • High accuracy coolant temperature control
  • Simple and practical user interface
  • Optional heating feature

Additional Info

Features
Specifications
Get a Quote
Download Product's Catalogue
Contact Us
  • Precise Coolant Temperature Control
  • Compatible With Various Types of Coolants
  • Self Priming
  • Automatically Bleeds Air Out of the System
  • Anti-Freeze Protection
  • Low Noise

Technical Data

Cooling Capacity

150 Watt

Control Temperature Range

From Coolant Freezing Point Up to Ambient Temperature

Coolant

Water, Glycol, or Any Other Noncorrosive

and Nonhazardous Liquid

Coolant Container Volume

Variable (Default Settings: 100 mL)

Coolant Mass Flow Rate

45 – 90 ml/s

Power

300 Watt

Bleeding the Air Out

Automatic

Heating Option

Optional (Up to 60ºC)

Size

Width : 155 mm

Height : 510 mm

Length : 480 mm

Weight

5 Kg
